PMPB20XPEZ

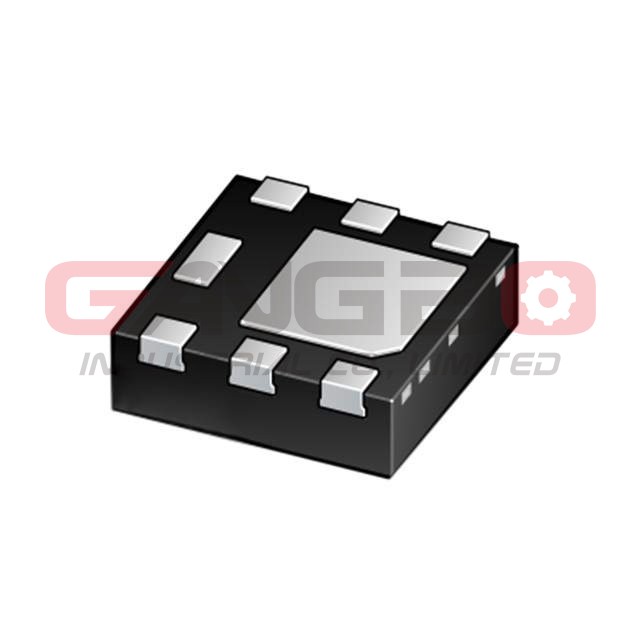

Image is for reference, please contact us to get the real picture

Part No :: PMPB20XPEZ

Manufacturer: Nexperia

Description: MOSFET P-CH 20V 7.2A DFN2020MD-6

Catalog: Transistors - FETs, MOSFETs - Single

Availability: 15632 pieces

Shipped from: HK warehouse

Expected Shipping Date: May 09 - May 13 2025

Type	Description
Series:	TrenchMOS™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	7.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	23.5mOhm @ 7.2A, 4.5V
Vgs(th) (Max) @ Id:	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	45 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	2945 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	1.7W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DFN2020MD-6
Package / Case:	6-UDFN Exposed Pad

PMPB20XPEZ is available at GangBo-ic.com, Please review product page below for detailed information, including PMPB20XPEZ price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for PMPB20XPEZ to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
