AD7846JNZ

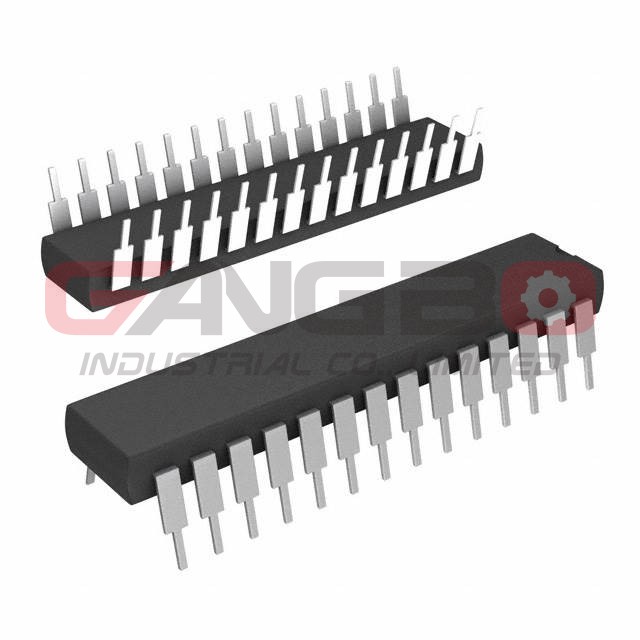

Image is for reference, please contact us to get the real picture

Part No :: AD7846JNZ

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: IC DAC 16BIT V-OUT 28DIP

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

Availability: 323632 pieces

Shipped from: HK warehouse

Expected Shipping Date: Nov 01 - Nov 05 2025

PDF: AD7846JNZ PDF

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Bits:	16
Number of D/A Converters:	1
Settling Time:	9µs
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	Parallel
Reference Type:	External
Voltage - Supply, Analog:	±11.4V ~ 15.75V
Voltage - Supply, Digital:	5V
INL/DNL (LSB):	±16 (Max), ±1 (Max)
Architecture:	String DAC
Operating Temperature:	0°C ~ 70°C
Package / Case:	28-DIP (0.600", 15.24mm)
Supplier Device Package:	28-PDIP
Mounting Type:	Through Hole

AD7846JNZ is available at GangBo-ic.com, Please review product page below for detailed information, including AD7846JNZ price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for AD7846JNZ to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
