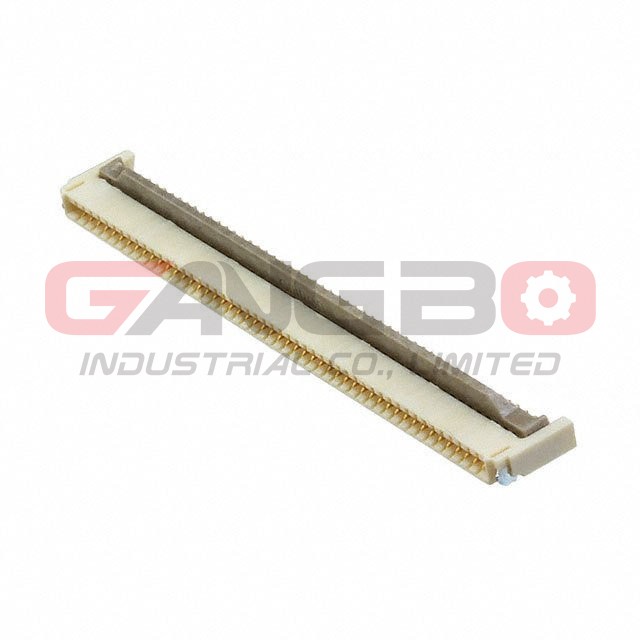

XF2W-5015-1AE

Image is for reference, please contact us to get the real picture

Part No :: XF2W-5015-1AE

Manufacturer: Omron Electronics Components

Description: CONN FPC 50POS 0.50MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

Availability: 350035 pieces

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

PDF: XF2W-5015-1AE PDF

Type	Description
Series:	XF2W
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	50
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.044" (1.12mm)
Locking Feature:	Rotary Lock, Backlock
Cable End Type:	Tapered
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:	Liquid Crystal Polymer (LCP), Halogen Free
Features:	-
Voltage Rating:	50V
Operating Temperature:	-30°C ~ 85°C
Material Flammability Rating:	UL94 V-0

XF2W-5015-1AE is available at GangBo-ic.com, Please review product page below for detailed information, including XF2W-5015-1AE price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for XF2W-5015-1AE to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
