FH12-26S-1SH

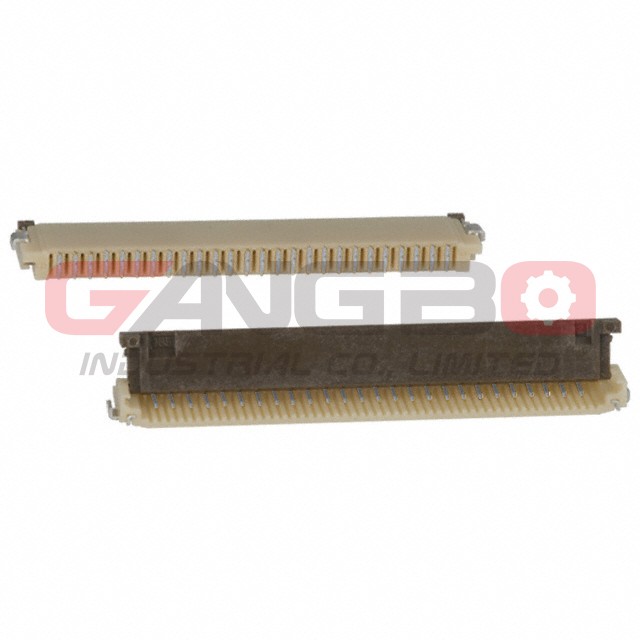

Image is for reference, please contact us to get the real picture

Part No :: FH12-26S-1SH

Manufacturer: Hirose

Description: CONN FFC BOTTOM 26POS 1.00MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

Availability: 660366 pieces

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

PDF: FH12-26S-1SH PDF

Type	Description
Series:	FH12
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	26
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.079" (2.00mm)
Locking Feature:	Flip Lock
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin-Lead
Housing Material:	Polyamide (PA), Nylon
Actuator Material:	Polyphenylene Sulfide (PPS)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0

FH12-26S-1SH is available at GangBo-ic.com, Please review product page below for detailed information, including FH12-26S-1SH price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for FH12-26S-1SH to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
