PZC03SBDN

PZC03SBDN

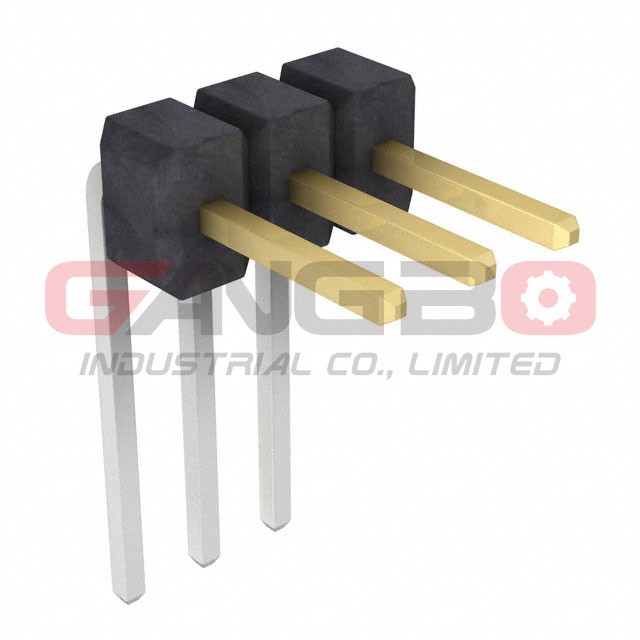

Image is for reference, please contact us to get the real picture

Part No :

PZC03SBDN

Manufacturer
Sullins Connector Solutions
Description
CONN HEADER R/A 3POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
389938 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 31 - Nov 04 2025
PDF
PZC03SBDN PDF
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.420" (10.67mm)
Overall Contact Length:-
Insulation Height:0.140" (3.56mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Polyester
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
PZC03SBDN is available at GangBo-ic.com, Please review product page below for detailed information, including PZC03SBDN price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for PZC03SBDN to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
