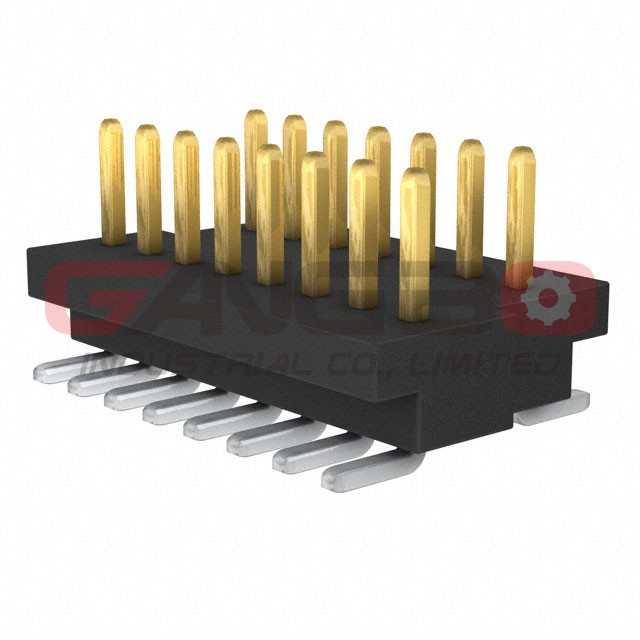

CONN HEADER SMD 15POS 1MM
24V/24V,300W/24V,150W COMPAC C
CONN RCPT 80POS 0.05 GOLD SMD
8D 4C 4#22D SKT PLUG
Type | Description |
---|---|
Series: | BKT |
Package: | Tube |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.039" (1.00mm) |
Number of Positions: | 15 |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.100" (2.54mm) |
Number of Positions Loaded: | All |
Style: | Board to Board |
Shrouding: | Unshrouded |
Mounting Type: | Surface Mount |
Termination: | Solder |
Fastening Type: | Push-Pull |
Contact Length - Mating: | 0.065" (1.65mm) |
Contact Length - Post: | - |
Overall Contact Length: | - |
Insulation Height: | 0.064" (1.63mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | 3.00µin (0.076µm) |
Contact Finish - Post: | Tin |
Contact Material: | Phosphor Bronze |
Insulation Material: | Liquid Crystal Polymer (LCP) |
Features: | - |
Operating Temperature: | -55°C ~ 125°C |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black |
Current Rating (Amps): | 2.8A per Contact |
Voltage Rating: | - |
