MX26032NP1

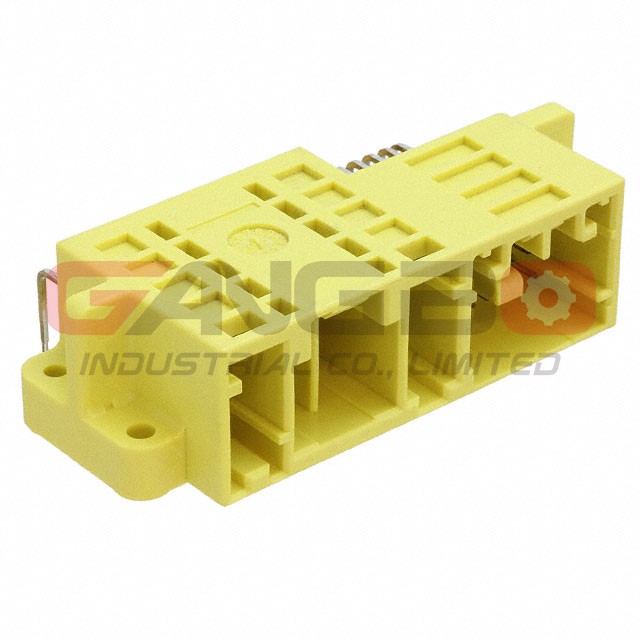

Image is for reference, please contact us to get the real picture

Part No :: MX26032NP1

Manufacturer: JAE Electronics

Description: CONN HEADER R/A 32POS

Catalog: Rectangular Connectors - Headers, Male Pins

Availability: 350635 pieces

Shipped from: HK warehouse

Expected Shipping Date: Oct 26 - Oct 30 2025

PDF: MX26032NP1 PDF

Type	Description
Series:	MX26
Package:	Tray
Part Status:	Obsolete
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	-
Number of Positions:	32
Number of Rows:	2, 3
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	-
Contact Length - Post:	0.126" (3.20mm)
Overall Contact Length:	-
Insulation Height:	0.701" (17.80mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Syndiotactic Polystyrene (SPS), Glass Filled
Features:	Mounting Flange
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Yellow
Current Rating (Amps):	-
Voltage Rating:	-

MX26032NP1 is available at GangBo-ic.com, Please review product page below for detailed information, including MX26032NP1 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for MX26032NP1 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
