0015913306

0015913306

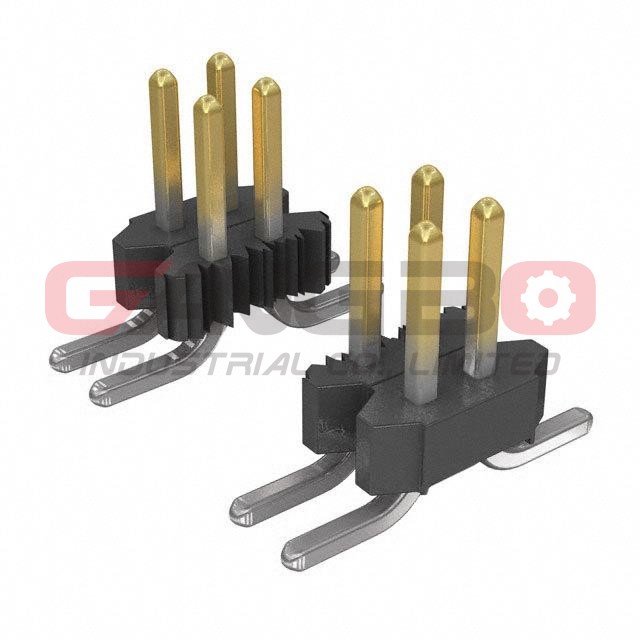

Image is for reference, please contact us to get the real picture

Part No :

0015913306

Manufacturer
Woodhead - Molex
Description
CONN HEADER SMD 30POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
151415 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 16 - Oct 20 2025
PDF
0015913306 PDF
Type Description
Series:C-Grid 71308
Package:Tube
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:30
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.090" (2.29mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:Pick and Place
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0015913306 is available at GangBo-ic.com, Please review product page below for detailed information, including 0015913306 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 0015913306 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
