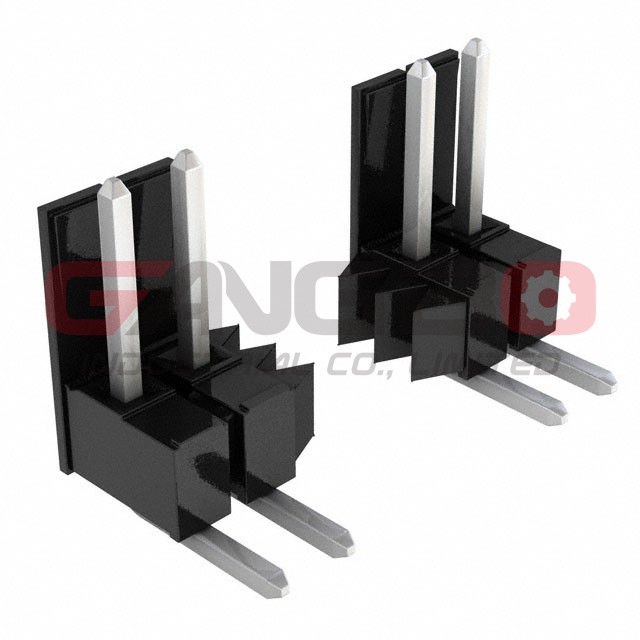

Image is for reference, please contact us to get the real picture

Part No :

0022252367

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 36POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
271827 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 30 - Nov 03 2025
PDF
0022252367 PDF
Type Description
Series:KK254, 42624
Package:Bulk
Part Status:Obsolete
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:36
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.295" (7.49mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:0.284" (7.21mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
