M20-9992946

M20-9992946

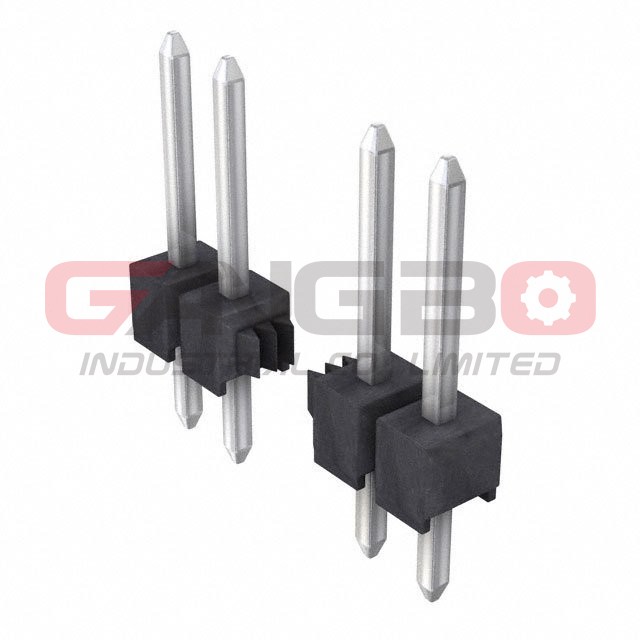

Image is for reference, please contact us to get the real picture

Part No :

M20-9992946

Manufacturer
Harwin
Description
CONN HEADER VERT 29POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
338033 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 13 - Oct 17 2025
PDF
M20-9992946 PDF
Type Description
Series:M20
Package:Bulk
Part Status:Obsolete
Connector Type:Header, Cuttable
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:29
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:0.460" (11.68mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA6T), Nylon 6T
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A per Contact
Voltage Rating:-
M20-9992946 is available at GangBo-ic.com, Please review product page below for detailed information, including M20-9992946 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for M20-9992946 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
