81020-M00203-RB

81020-M00203-RB

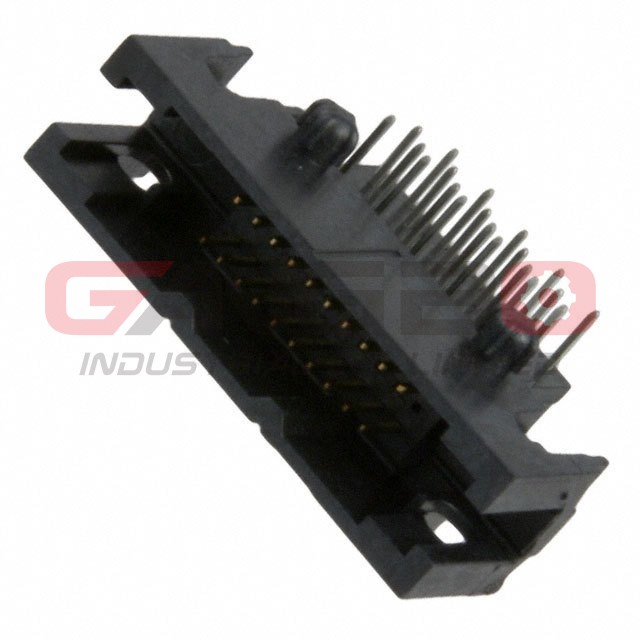

Image is for reference, please contact us to get the real picture

Part No :

81020-M00203-RB

Manufacturer
3M
Description
CONN HEADER R/A 20POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
538253 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 25 - Oct 29 2025
PDF
81020-M00203-RB PDF
Type Description
Series:810
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:20
Number of Rows:-
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.140" (3.56mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.310" (7.87mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Lock
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):0.5A
Voltage Rating:-
81020-M00203-RB is available at GangBo-ic.com, Please review product page below for detailed information, including 81020-M00203-RB price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 81020-M00203-RB to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
