PTC20DAEN

PTC20DAEN

CONN HEADER VERT 40POS 2.54MM

PTC20DAEN

PTC20DAEN

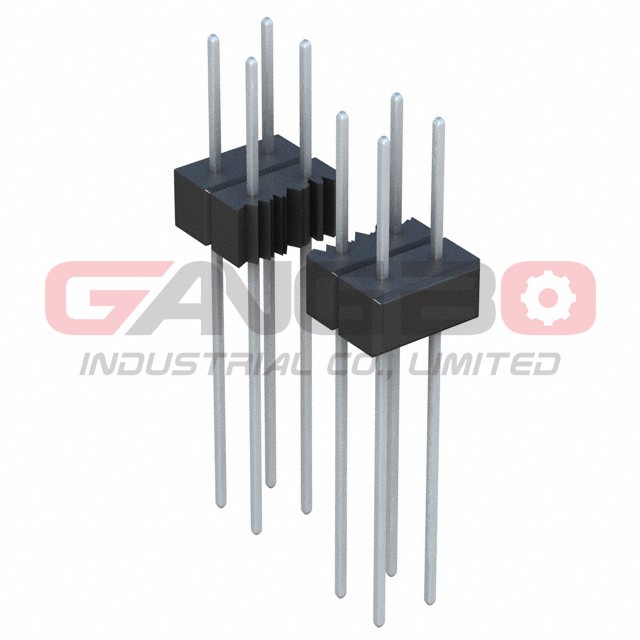

Image is for reference, please contact us to get the real picture

Part No :

PTC20DAEN

Manufacturer
Sullins Connector Solutions
Description
CONN HEADER VERT 40POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
878387 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 31 - Nov 04 2025
PDF
PTC20DAEN PDF
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.520" (13.21mm)
Overall Contact Length:0.850" (21.59mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Polyester
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
PTC20DAEN is available at GangBo-ic.com, Please review product page below for detailed information, including PTC20DAEN price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for PTC20DAEN to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
