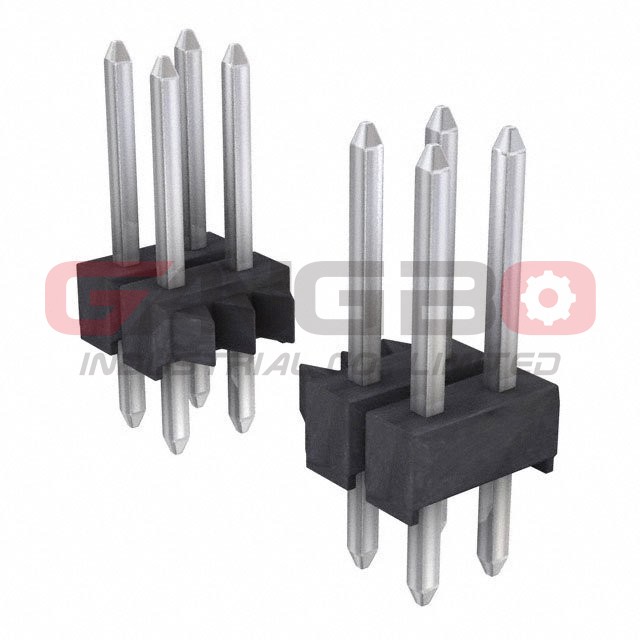

Image is for reference, please contact us to get the real picture

Part No :

M20-9761146

Manufacturer
Harwin
Description
CONN HEADER VERT 22POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
298529 pieces
Shipped from
HK warehouse
Expected Shipping Date
Nov 06 - Nov 10 2025
PDF
M20-9761146 PDF
Type Description
Series:M20
Package:Bulk
Part Status:Obsolete
Connector Type:Header, Cuttable
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:22
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.228" (5.80mm)
Contact Length - Post:0.122" (3.10mm)
Overall Contact Length:0.452" (11.48mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA6T), Nylon 6T
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A per Contact
Voltage Rating:-
