EHF-110-01-L

EHF-110-01-L

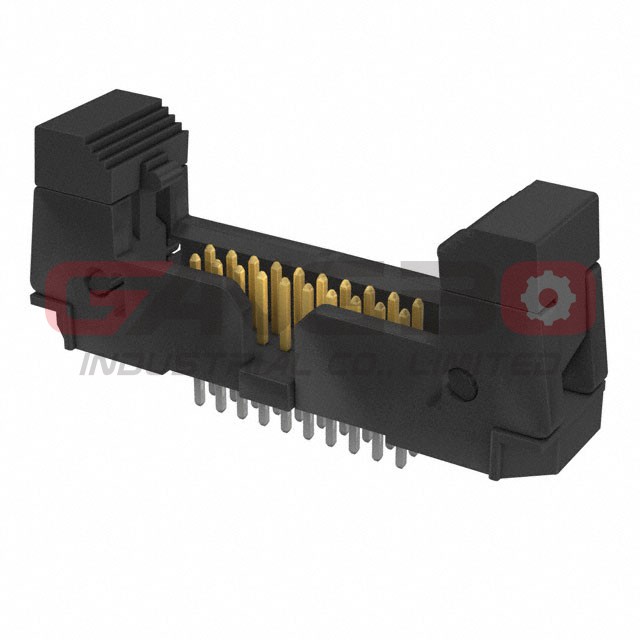

Image is for reference, please contact us to get the real picture

Part No :

EHF-110-01-L

Manufacturer
Samtec, Inc.
Description
CONN HEADER VERT 20POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
168216 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 25 - Oct 29 2025
Type Description
Series:EHF
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:0.120" (3.05mm)
Contact Length - Post:0.107" (2.71mm)
Overall Contact Length:0.350" (8.89mm)
Insulation Height:0.325" (8.25mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:Keying Slot
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):1.75A
Voltage Rating:-
EHF-110-01-L is available at GangBo-ic.com, Please review product page below for detailed information, including EHF-110-01-L price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for EHF-110-01-L to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
