0039307031

0039307031

CONN HEADER R/A 3POS 4.2MM

0039307031

0039307031

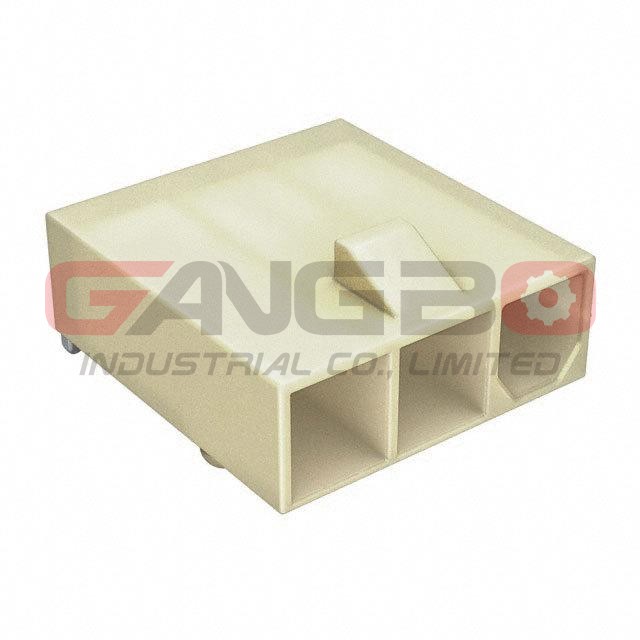

Image is for reference, please contact us to get the real picture

Part No :

0039307031

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 3POS 4.2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
648364 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 25 - Oct 29 2025
PDF
0039307031 PDF
Type Description
Series:Mini-Fit Jr 5569
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.213" (5.40mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:Board Lock
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
0039307031 is available at GangBo-ic.com, Please review product page below for detailed information, including 0039307031 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 0039307031 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
