794305-1

794305-1

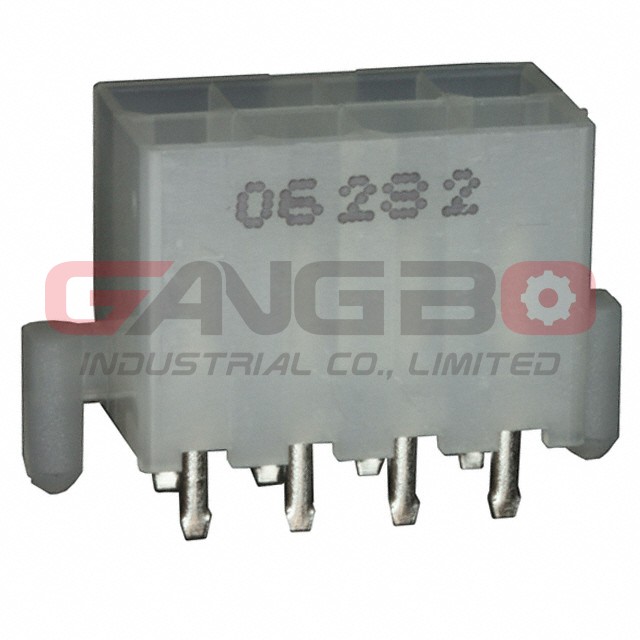

Image is for reference, please contact us to get the real picture

Part No :

794305-1

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER VERT 8POS 4.2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
757875 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 10 - Oct 14 2025
PDF
794305-1 PDF
Type Description
Series:AMP-DUAC
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.165" (4.20mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.504" (12.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:118.1µin (3.00µm)
Contact Finish - Post:Tin-Lead
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Board Lock
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:600VAC
794305-1 is available at GangBo-ic.com, Please review product page below for detailed information, including 794305-1 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 794305-1 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
