2524-5003UB

2524-5003UB

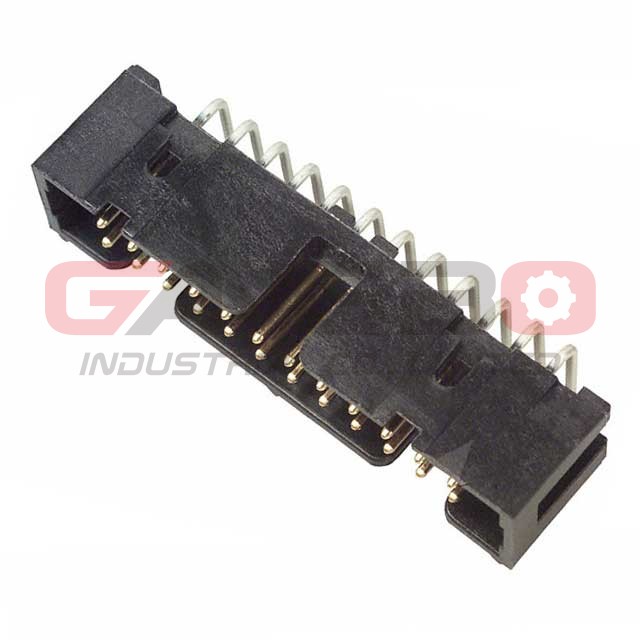

Image is for reference, please contact us to get the real picture

Part No :

2524-5003UB

Manufacturer
3M
Description
CONN HEADER R/A 24POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
819081 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 18 - Oct 22 2025
PDF
2524-5003UB PDF
Type Description
Series:2500
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:24
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.243" (6.17mm)
Contact Length - Post:0.155" (3.94mm)
Overall Contact Length:-
Insulation Height:0.338" (8.59mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin-Lead
Contact Material:Copper Alloy
Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features:Keying Slot
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1.75A
Voltage Rating:-
