0009781151

0009781151

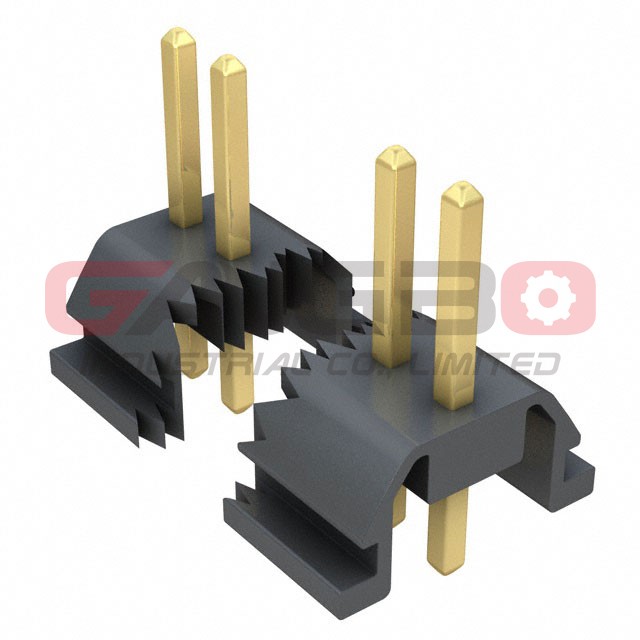

Image is for reference, please contact us to get the real picture

Part No :

0009781151

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 15POS 3.96MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
939393 pieces
Shipped from
HK warehouse
Expected Shipping Date
Jun 16 - Jun 20 2025
PDF
0009781151 PDF
Type Description
Series:KK396, 2220
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:15
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Unshrouded
Mounting Type:Panel Mount, Snap-In; Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.630" (16.00mm)
Contact Length - Post:0.635" (16.13mm)
Overall Contact Length:1.380" (35.05mm)
Insulation Height:0.250" (6.35mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:20.0µin (0.51µm)
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
0009781151 is available at GangBo-ic.com, Please review product page below for detailed information, including 0009781151 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 0009781151 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
