CONN HEADER VERT 16POS 2.54MM
FERRITE BEAD 600 OHM 1206 4LN
CONN RCPT HSG 28POS 2.20MM

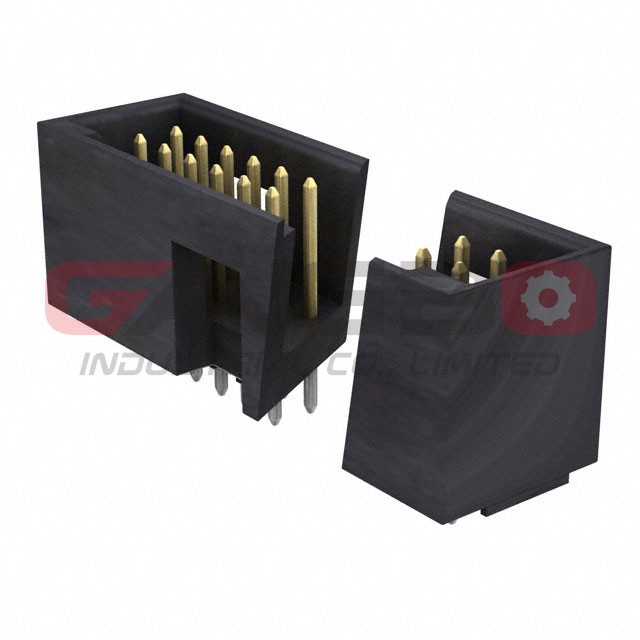

Image is for reference, please contact us to get the real picture
| Type | Description |
|---|---|
| Series: | C-Grid 8723 |
| Package: | Tube |
| Part Status: | Obsolete |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Positions: | 16 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Detent Lock |
| Contact Length - Mating: | 0.315" (8.00mm) |
| Contact Length - Post: | 0.130" (3.30mm) |
| Overall Contact Length: | - |
| Insulation Height: | 0.475" (12.07mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 15.0µin (0.38µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Phosphor Bronze |
| Insulation Material: | Polyester, Glass Filled |
| Features: | - |
| Operating Temperature: | - |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | - |
| Voltage Rating: | - |
