3314-5302UG

3314-5302UG

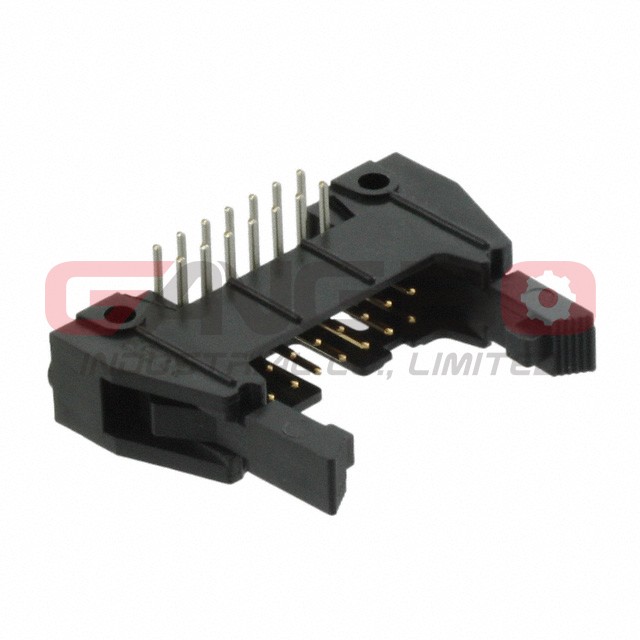

Image is for reference, please contact us to get the real picture

Part No :

3314-5302UG

Manufacturer
3M
Description
CONN HEADER R/A 14POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
719871 pieces
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
PDF
3314-5302UG PDF
Type Description
Series:3000
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:14
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks, Long
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.112" (2.84mm)
Overall Contact Length:-
Insulation Height:0.340" (8.64mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin-Lead
Contact Material:Copper Alloy
Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features:Keying Slot, Mounting Flange
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1.75A
Voltage Rating:-
3314-5302UG is available at GangBo-ic.com, Please review product page below for detailed information, including 3314-5302UG price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 3314-5302UG to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
