M22-2411246

M22-2411246

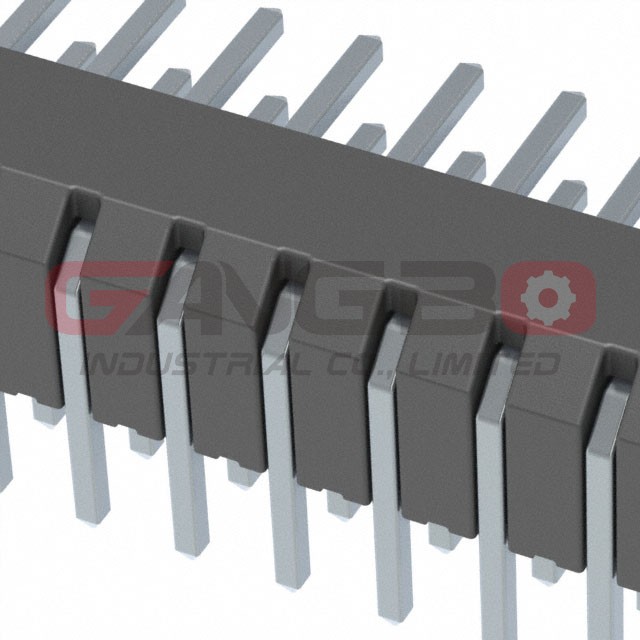

Image is for reference, please contact us to get the real picture

Part No :

M22-2411246

Manufacturer
Harwin
Description
CONN HEADER R/A 24POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
220022 pieces
Shipped from
HK warehouse
Expected Shipping Date
Nov 01 - Nov 05 2025
PDF
M22-2411246 PDF
Type Description
Series:M22
Package:Tube
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:24
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.157" (4.00mm)
Contact Length - Post:0.110" (2.79mm)
Overall Contact Length:-
Insulation Height:0.169" (4.30mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA6T), Nylon 6T
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2A per Contact
Voltage Rating:-
M22-2411246 is available at GangBo-ic.com, Please review product page below for detailed information, including M22-2411246 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for M22-2411246 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
