BCS-145-L-D-PE-007

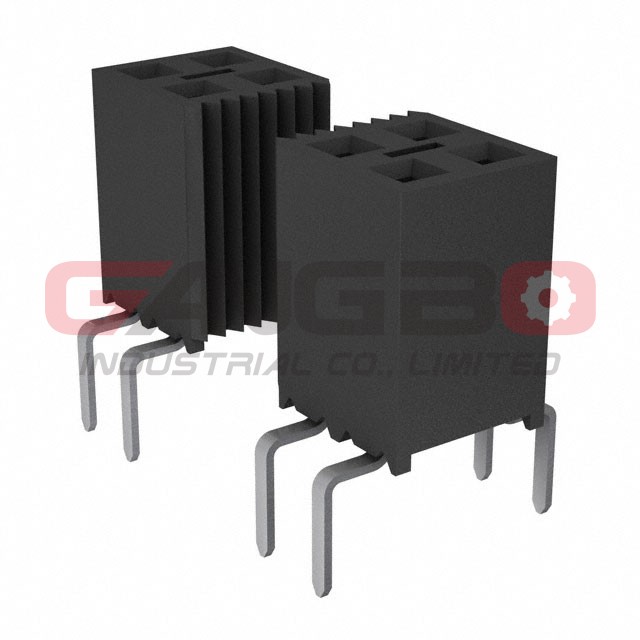

Image is for reference, please contact us to get the real picture

Part No :: BCS-145-L-D-PE-007

Manufacturer: Samtec, Inc.

Description: CONN RCPT 90POS 0.1 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

Availability: 099609 pieces

Shipped from: HK warehouse

Expected Shipping Date: Oct 25 - Oct 29 2025

PDF: BCS-145-L-D-PE-007 PDF

Type	Description
Series:	Tiger Claw™ BCS
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle, Pass Through
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	90
Number of Positions Loaded:	89
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Insulation Color:	Black
Insulation Height:	0.290" (7.37mm)
Contact Length - Post:	0.128" (3.25mm)
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	4.6A per Contact
Voltage Rating:	475VAC

BCS-145-L-D-PE-007 is available at GangBo-ic.com, Please review product page below for detailed information, including BCS-145-L-D-PE-007 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for BCS-145-L-D-PE-007 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
