HMC511LP5E

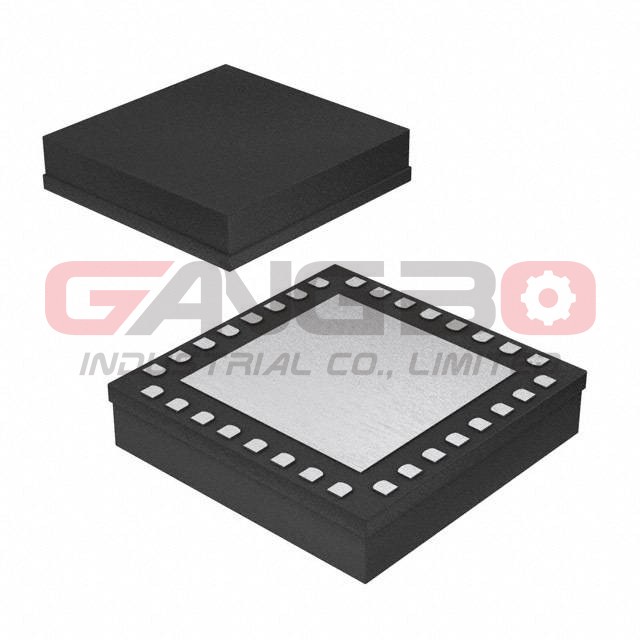

Image is for reference, please contact us to get the real picture

Part No :: HMC511LP5E

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: VCO 4.8GHZ/9.6GHZ 2-13V 5X5MM

Catalog: VCOs (Voltage Controlled Oscillators)

Availability: 10260 pieces

Shipped from: HK warehouse

Expected Shipping Date: May 11 - May 15 2025

PDF: HMC511LP5E PDF

Type	Description
Series:	-
Package:	Strip
Part Status:	Active
Frequency Range:	4.525 ~ 5.075GHz, 9.05 ~ 10.15GHz
Frequency - Center:	4.8GHz, 9.6GHz
Voltage - Supply:	5V
Tuning Voltage (VDC):	2 V ~ 13.0 V
2nd Harmonic, Typ (dBc):	15
Icc Max:	300mA
Pushing (MHz/V):	15
Power (dBm):	8±3, 12.5±3.5
Phase Noise Typ (dBc/Hz):	-115
Operating Temperature:	-40°C ~ 85°C
Package / Case:	32-VFQFN Exposed Pad, CSP
Size / Dimension:	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height:	0.039" (1.00mm)

HMC511LP5E is available at GangBo-ic.com, Please review product page below for detailed information, including HMC511LP5E price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for HMC511LP5E to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
