FQD10N20TM

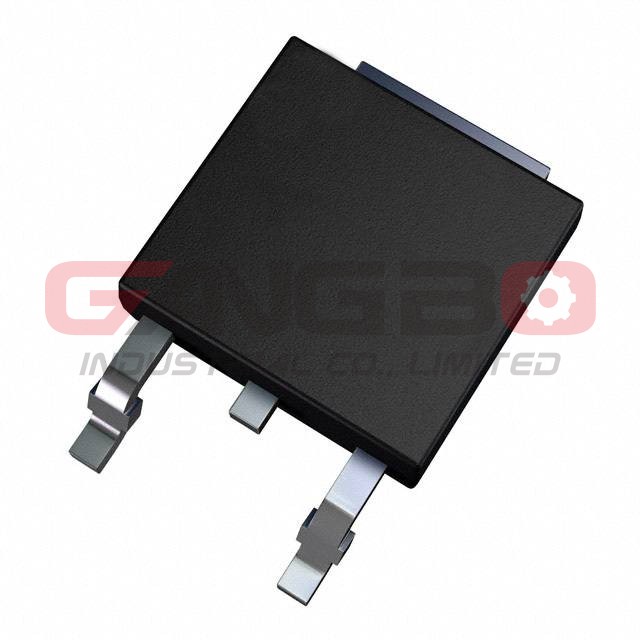

Image is for reference, please contact us to get the real picture

Part No :: FQD10N20TM

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 200V 7.6A DPAK

Catalog: Transistors - FETs, MOSFETs - Single

Availability: 648864 pieces

Shipped from: HK warehouse

Expected Shipping Date: May 20 - May 24 2025

PDF: FQD10N20TM PDF

Type	Description
Series:	QFET®
Package:	Tape & Reel (TR)
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	200 V
Current - Continuous Drain (Id) @ 25°C:	7.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	360mOhm @ 3.8A, 10V
Vgs(th) (Max) @ Id:	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	18 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	670 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	2.5W (Ta), 51W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D-Pak
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63

FQD10N20TM is available at GangBo-ic.com, Please review product page below for detailed information, including FQD10N20TM price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for FQD10N20TM to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
