STP80NF03L

STP80NF03L

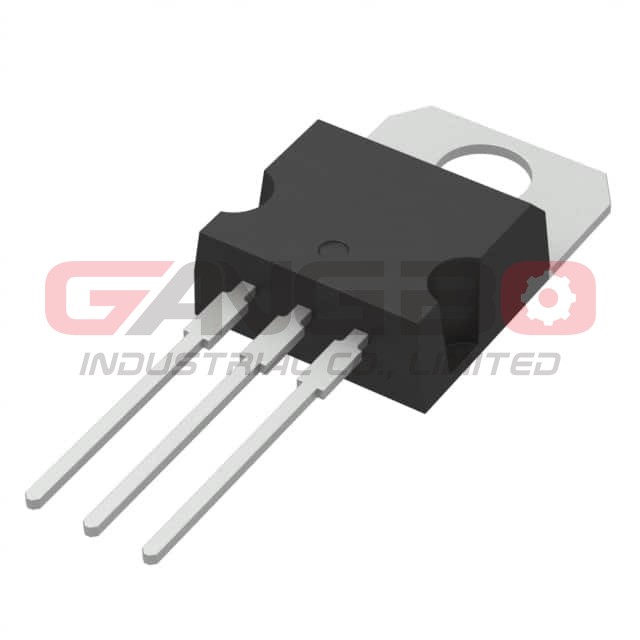

Image is for reference, please contact us to get the real picture

Part No :

STP80NF03L

Manufacturer
STMicroelectronics
Description
MOSFET N-CH 30V 80A TO220AB
Catalog
Transistors - FETs, MOSFETs - Single
Availability
694169 pieces
Shipped from
HK warehouse
Expected Shipping Date
Jun 20 - Jun 24 2025
PDF
STP80NF03L PDF
Type Description
Series:STripFET™ II
Package:Tube
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:80A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:4.5mOhm @ 40A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:110 nC @ 4.5 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:5500 pF @ 25 V
FET Feature:-
Power Dissipation (Max):300W (Tc)
Operating Temperature:175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220AB
Package / Case:TO-220-3
STP80NF03L is available at GangBo-ic.com, Please review product page below for detailed information, including STP80NF03L price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for STP80NF03L to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
