IRF9540S

IRF9540S

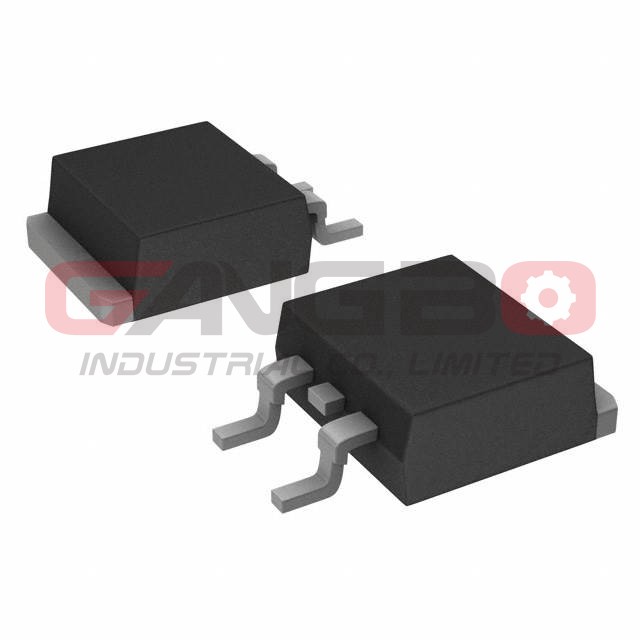

Image is for reference, please contact us to get the real picture

Part No :

IRF9540S

Manufacturer
Vishay / Siliconix
Description
MOSFET P-CH 100V 19A D2PAK
Catalog
Transistors - FETs, MOSFETs - Single
Availability
184218 pieces
Shipped from
HK warehouse
Expected Shipping Date
Jun 20 - Jun 24 2025
PDF
IRF9540S PDF
Type Description
Series:-
Package:Tube
Part Status:Obsolete
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:19A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:200mOhm @ 11A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:61 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1400 pF @ 25 V
FET Feature:-
Power Dissipation (Max):3.7W (Ta), 150W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D2PAK
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
IRF9540S is available at GangBo-ic.com, Please review product page below for detailed information, including IRF9540S price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for IRF9540S to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
