MCP4801-E/P

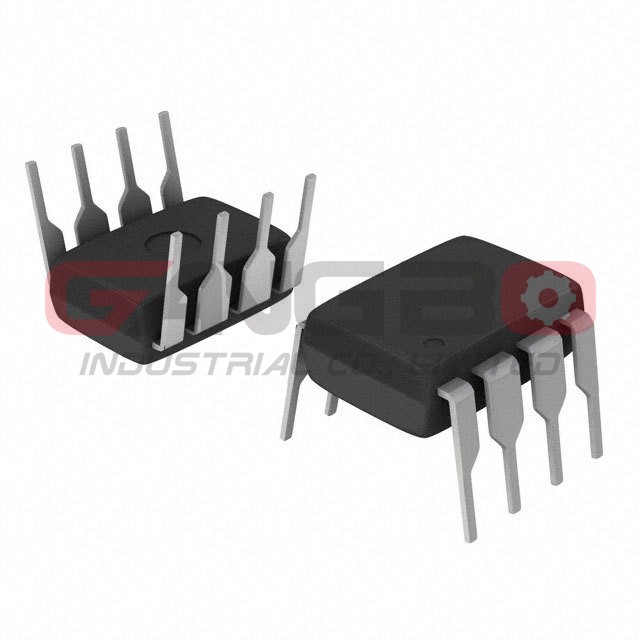

Image is for reference, please contact us to get the real picture

Part No :: MCP4801-E/P

Manufacturer: Roving Networks / Microchip Technology

Description: IC DAC 8BIT V-OUT 8DIP

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

Availability: 10398 pieces

Shipped from: HK warehouse

Expected Shipping Date: Nov 07 - Nov 11 2025

PDF: MCP4801-E/P PDF

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Bits:	8
Number of D/A Converters:	1
Settling Time:	4.5µs (Typ)
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	SPI
Reference Type:	Internal
Voltage - Supply, Analog:	2.7V ~ 5.5V
Voltage - Supply, Digital:	2.7V ~ 5.5V
INL/DNL (LSB):	±0.25, ±0.2
Architecture:	String DAC
Operating Temperature:	-40°C ~ 125°C
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-PDIP
Mounting Type:	Through Hole

MCP4801-E/P is available at GangBo-ic.com, Please review product page below for detailed information, including MCP4801-E/P price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for MCP4801-E/P to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
