PHP00805E2402BBT1

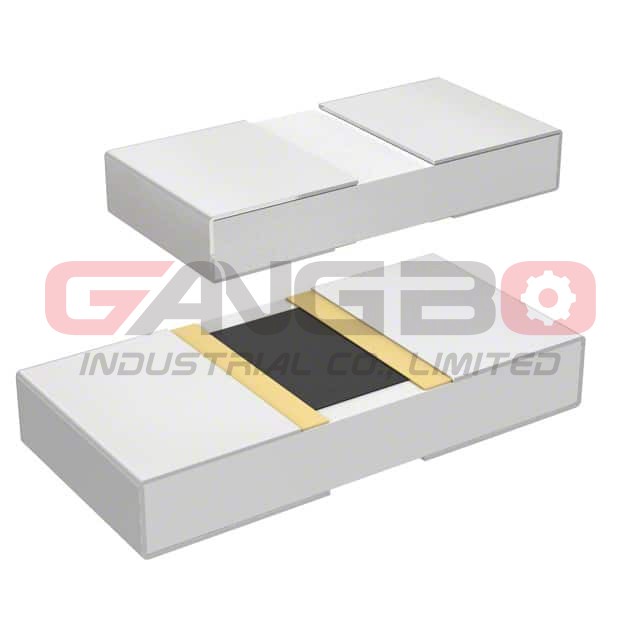

Image is for reference, please contact us to get the real picture

Part No :: PHP00805E2402BBT1

Manufacturer: Vishay

Description: RES SMD 24K OHM 0.1% 5/8W 0805

Catalog: Chip Resistors-Surface Mount

Availability: 292029 pieces

Shipped from: HK warehouse

Expected Shipping Date: Oct 26 - Oct 30 2025

PDF: PHP00805E2402BBT1 PDF

Type	Description
Series:	PHP
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	24 kOhms
Tolerance:	±0.1%
Power (Watts):	0.63W, 5/8W
Composition:	Thin Film
Features:	Flame Proof, Moisture Resistant, Safety
Temperature Coefficient:	±25ppm/°C
Operating Temperature:	-55°C ~ 155°C
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805
Ratings:	-
Size / Dimension:	0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max):	0.033" (0.84mm)
Number of Terminations:	2
Failure Rate:	-

PHP00805E2402BBT1 is available at GangBo-ic.com, Please review product page below for detailed information, including PHP00805E2402BBT1 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for PHP00805E2402BBT1 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
