M20-8762446P

M20-8762446P

CONN HEADER SMD 48POS 2.54MM

M20-8762446P

M20-8762446P

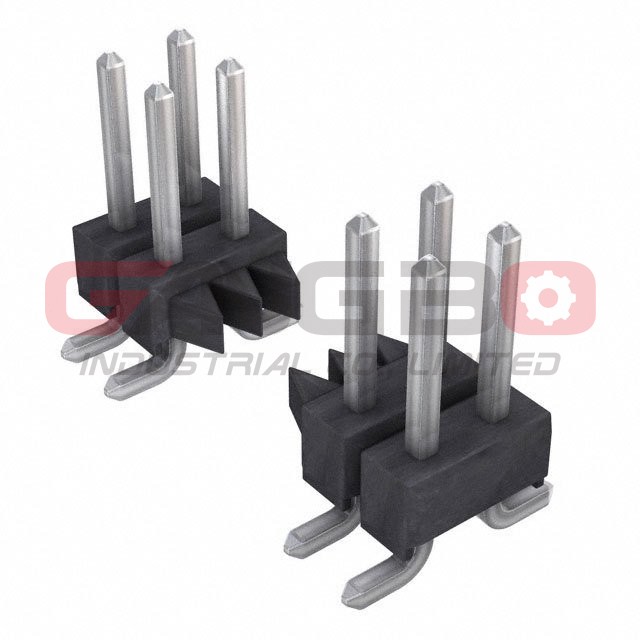

Image is for reference, please contact us to get the real picture

Part No :

M20-8762446P

Manufacturer
Harwin
Description
CONN HEADER SMD 48POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
607860 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 11 - Oct 15 2025
PDF
M20-8762446P PDF
Type Description
Series:M20
Package:Tube
Part Status:Obsolete
Connector Type:Header, Cuttable
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:48
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.228" (5.80mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA6T), Nylon 6T
Features:Pick and Place
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A per Contact
Voltage Rating:250V
M20-8762446P is available at GangBo-ic.com, Please review product page below for detailed information, including M20-8762446P price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for M20-8762446P to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
