0022281181

0022281181

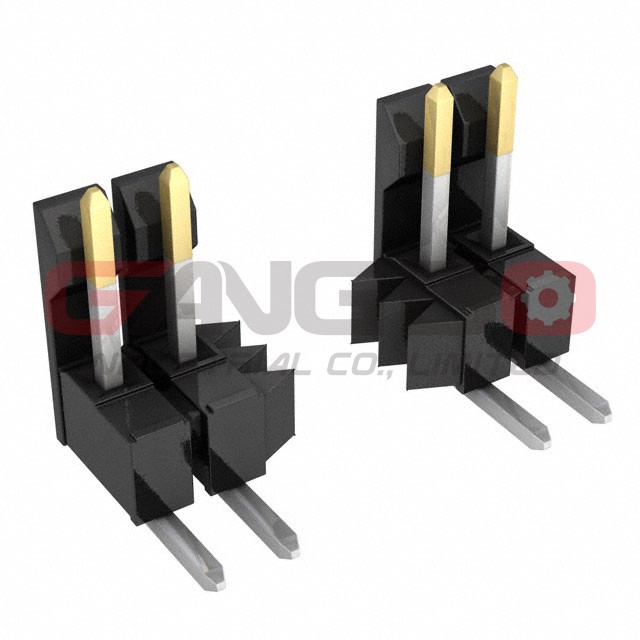

Image is for reference, please contact us to get the real picture

Part No :

0022281181

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 18POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
637863 pieces
Shipped from
HK warehouse
Expected Shipping Date
Oct 06 - Oct 10 2025
PDF
0022281181 PDF
Type Description
Series:KK254, 42228
Package:Bulk
Part Status:Obsolete
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:18
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.295" (7.49mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:0.284" (7.21mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0022281181 is available at GangBo-ic.com, Please review product page below for detailed information, including 0022281181 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 0022281181 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
