794108-1

794108-1

CONN HEADER R/A 24POS 4.14MM

794108-1

794108-1

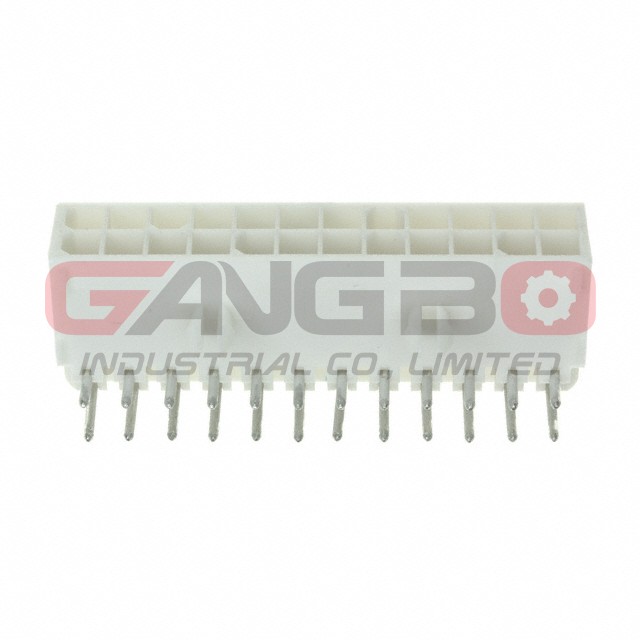

Image is for reference, please contact us to get the real picture

Part No :

794108-1

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER R/A 24POS 4.14MM
Catalog
Rectangular Connectors - Headers, Male Pins
Availability
19500 pieces
Shipped from
HK warehouse
Expected Shipping Date
Jun 23 - Jun 27 2025
PDF
794108-1 PDF
Type Description
Series:Mini-Universal MATE-N-LOK
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.163" (4.14mm)
Number of Positions:24
Number of Rows:2
Row Spacing - Mating:0.163" (4.14mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.145" (3.68mm)
Overall Contact Length:-
Insulation Height:0.386" (9.80mm)
Contact Shape:Circular
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:150.0µin (3.81µm)
Contact Finish - Post:Tin-Lead
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Board Lock
Operating Temperature:-20°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:White
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:600VAC
794108-1 is available at GangBo-ic.com, Please review product page below for detailed information, including 794108-1 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 794108-1 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
