FCD1300N80Z

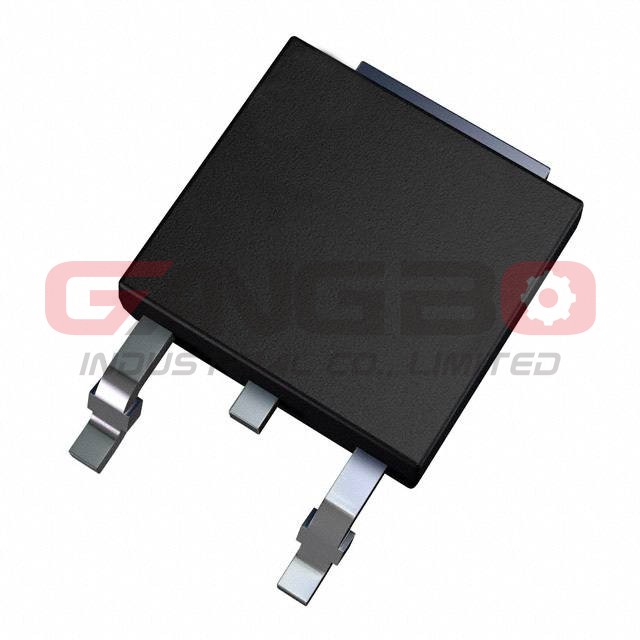

Image is for reference, please contact us to get the real picture

Part No :: FCD1300N80Z

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 800V 4A DPAK

Catalog: Transistors - FETs, MOSFETs - Single

Availability: 12492 pieces

Shipped from: HK warehouse

Expected Shipping Date: Oct 25 - Oct 29 2025

PDF: FCD1300N80Z PDF

Type	Description
Series:	SuperFET® II
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	800 V
Current - Continuous Drain (Id) @ 25°C:	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	1.3Ohm @ 2A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 400µA
Gate Charge (Qg) (Max) @ Vgs:	21 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	880 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	52W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DPAK
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63

FCD1300N80Z is available at GangBo-ic.com, Please review product page below for detailed information, including FCD1300N80Z price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for FCD1300N80Z to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
