STP75NS04Z

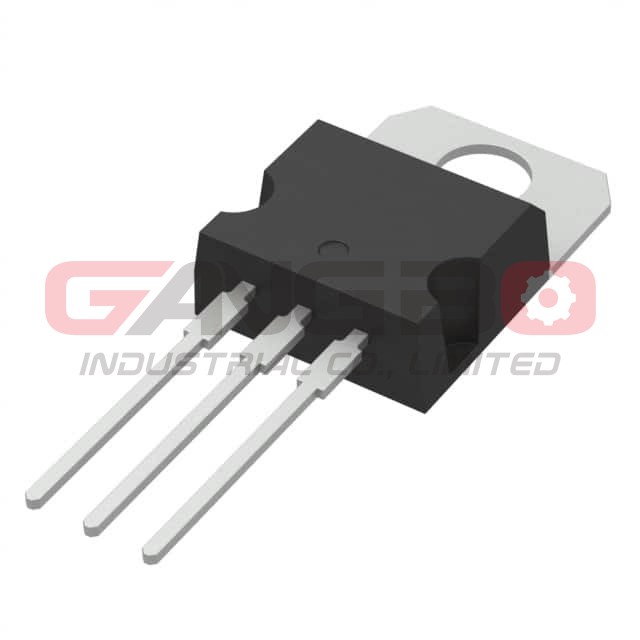

Image is for reference, please contact us to get the real picture

Part No :: STP75NS04Z

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 33V 80A TO220AB

Catalog: Transistors - FETs, MOSFETs - Single

Availability: 12623 pieces

Shipped from: HK warehouse

Expected Shipping Date: May 13 - May 17 2025

PDF: STP75NS04Z PDF

Type	Description
Series:	MESH OVERLAY™ III
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	33 V
Current - Continuous Drain (Id) @ 25°C:	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	11mOhm @ 40A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	50 nC @ 10 V
Vgs (Max):	-
Input Capacitance (Ciss) (Max) @ Vds:	1860 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	110W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220AB
Package / Case:	TO-220-3

STP75NS04Z is available at GangBo-ic.com, Please review product page below for detailed information, including STP75NS04Z price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for STP75NS04Z to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
